Description

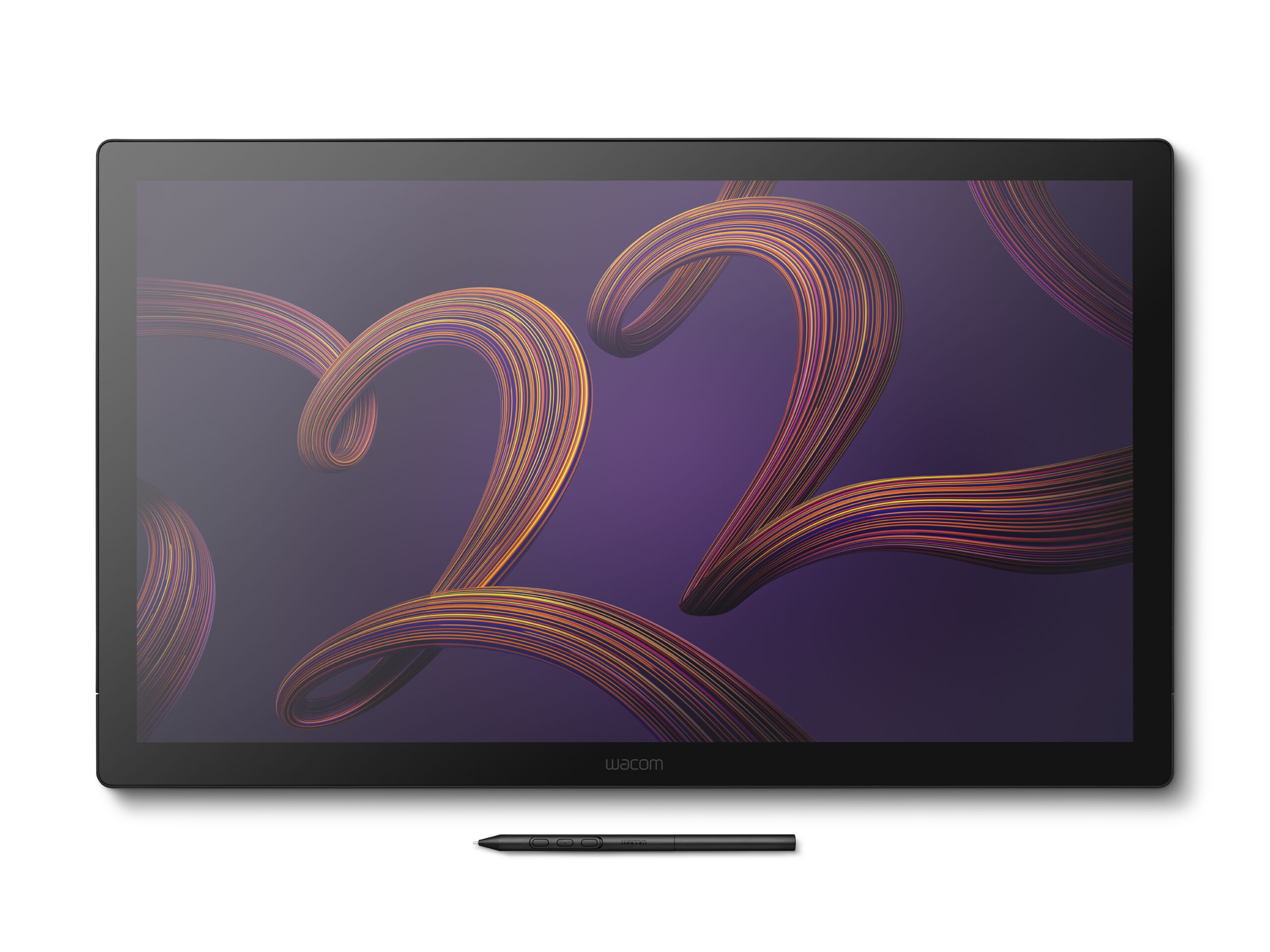

- High-End color performance: This 21.5” 4K (3840 x 2160 pixels) touchscreen display boasts 1.07 billion colors & built-in hardware presets for Adobe RGB, sRGB, DCI-P3 and Rec709, EBU, Rec2020, PQ and HLG; it also features a refresh rate of 120Hz allowing for near-zero latency.
- Wacom Pro Pen 3: Featuring 8192 levels of pressure sensitivity, three side switches, and the ability to customize the pen by swapping the included grips or adjusting the weight and center of balance, the Wacom Pro Pen 3 is Wacom’s most advanced pen.
- More screen, less space: With the conveniently placed 8 customizable ExpressKeys, easy-to-adjust on-screen menus, and improved multi-touch and pen gestures, you can tailor your setup to precisely match your preferences.

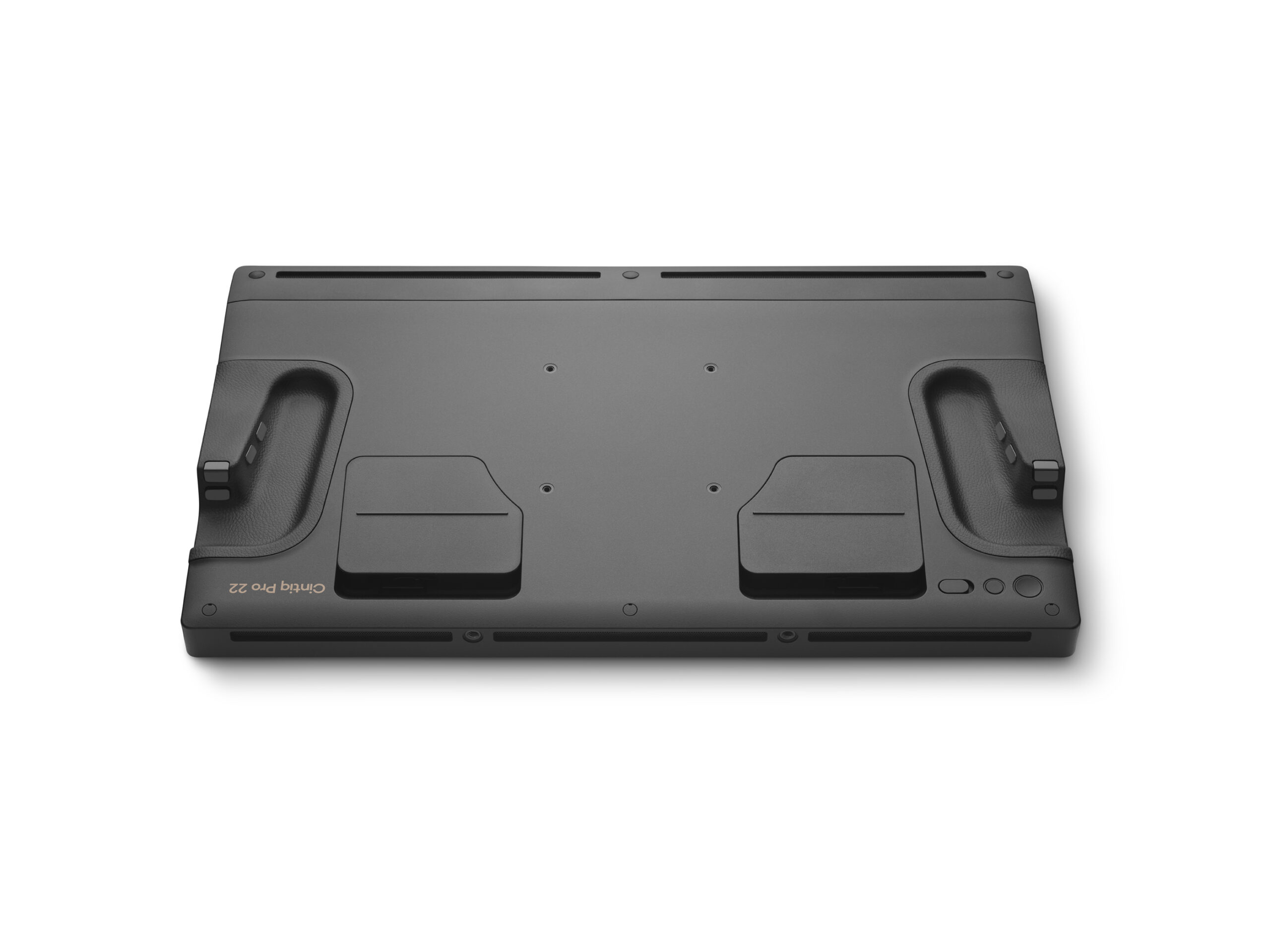

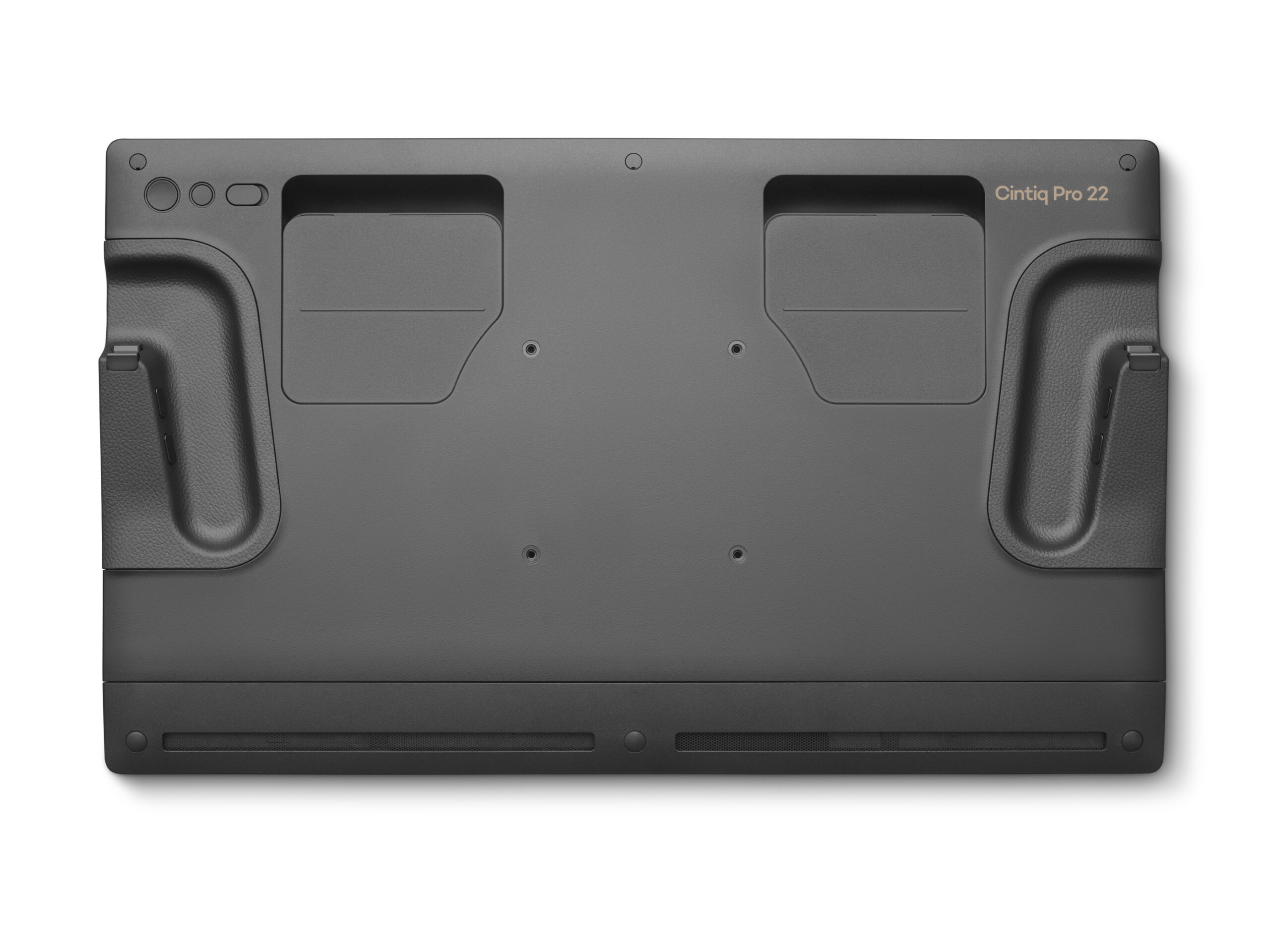

- Standard ¼ inch photo thread mount options: Four ¼ inch screw threads allow you to attach the included pen tray to the display and/or a mount for your phone or a camera – you can even add the Wacom Extension Table (sold separately) for your keyboard or reference materials.

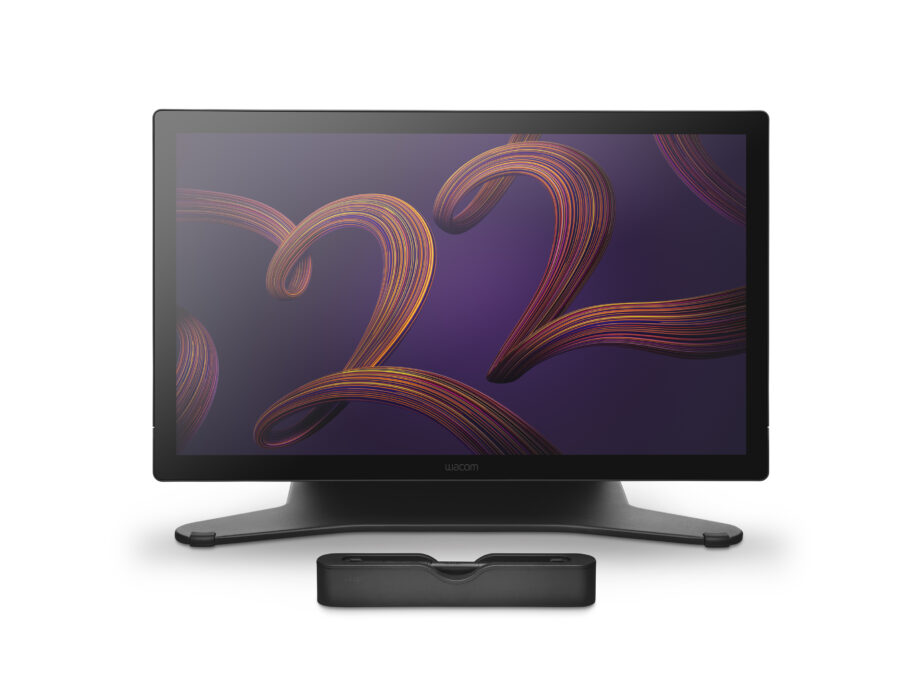

- Choice of stand or mounting arm: Create at the angle most comfortable for you by adding a VESA arm (100×100 mm) or the fully adjustable Wacom Cintiq Pro 22 Stand (ACK64802KZ) that supports rotation and tilt; stand and arms sold separately.
Wacom Pro Pen 3
Morphs to the way you make
From the inside out, Wacom Pro Pen 3 can be configured to your favorite feel. With customizable weight, grip thickness, pen buttons and center of balance, find the configuration that suits your style. This tailor-made approach to design delivers an unforgettable creative experience.
- 8,192 levels of pressure sensitivity, 3 side switches
- State of the Art Pen Technology: 3rd generation Wacom Pen technology
- Perfect Custom Fit: Customizations for weight balance, different grips or no-side-switch included
- Tilt recognition: Improved tilt+/-60 degrees
- Super Responsive: The Pro Pen 3 senses every nuance and every change, so even the lightest of touches will appear on the screen

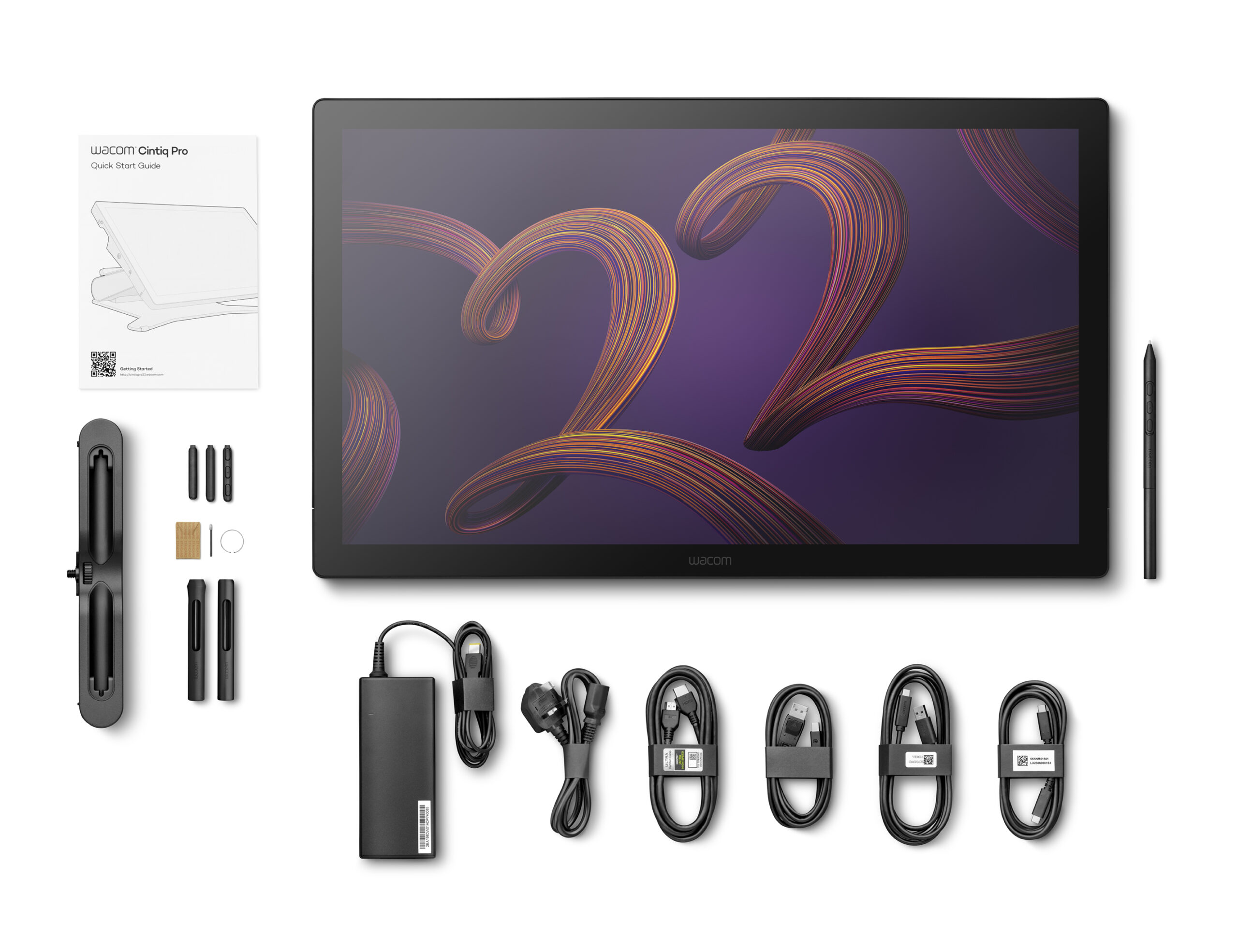

What's Included
- Wacom Cintiq Pro 22
- Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece

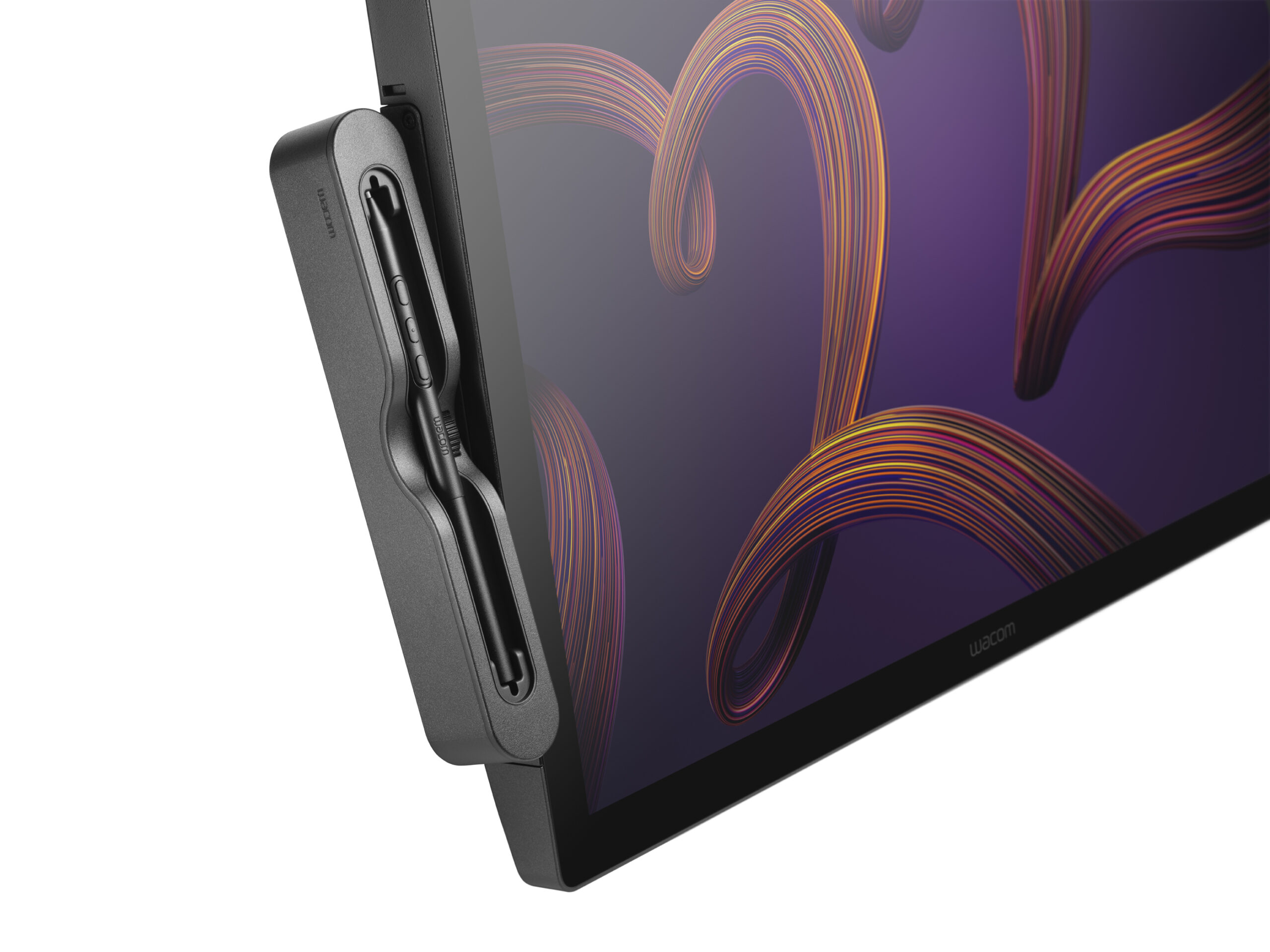

- Detachable pen tray with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
- USB-C to USB-C cable (1.8 m)
- USB-C to USB Standard A cable (1.8 m)
- HDMI cable (1.8 m)
- Mini DisplayPort to DisplayPort cable (1.8 m)
- AC adaptor
- Power cord (1.0 m)
- Quick start guide
- Regulation sheet
Full technical specifications
Screen size (approx.)
22″
Color Depth
1.07 billion (10 bits)
Screen size
21.5 in (54.6 cm)
Display resolution
3840 x 2160 pixels
Technology
IPS
Glass / surface
Edge-to-edge tempered glass with AG etching
Active area (mm)
476 x 268 mm
Active area (inch)
18.7 x 10.5 in
Aspect ratio
16:9
Supported resolution
- 640×480@60Hz (VGA)
- 720×400@70Hz (IBM_VGA)
- 720×480@60Hz
- 720×576@50Hz
- 800×600@60Hz (SVGA)
- 1024×768@60Hz (XGA)
- 1280×720@50Hz/60Hz (HD)
- 1280×1024@60Hz (SXGA)
- 1600×1200@60Hz (UXGA)
- 1920×1080@24Hz/48Hz/50Hz/60Hz/120Hz (FHD)
- 2560×1440@60Hz/120Hz (WQHD)
- 3840×2160@24Hz/48Hz/50Hz/60Hz/120Hz
Pixel pitch
0.12398(H) x 0.12398(V) mm
Viewing angle
170° (85°/85°) H, (85°/85°) V (typ)
Color gamut coverage ratio
- DCI-P3 99% (CIE 1931) (typ)
- Adobe RGB 95% (CIE 1931) (typ)
- Rec.709 100% (CIE1931) (typ)
- Pantone™ Validated and Pantone SkinTone™ Validated certifications
Contrast ratio
1200:1 (typ)
Brightness
300 cd/m2 (typ)
Response time (G2G)
12 ms (typ)
Pen name
Wacom Pro Pen 3
Pen pressure levels
8192 levels
Pen type
Pressure-sensitive, cordless, battery-free
Number of switches
3 or 0 side switches
Pen tilt supported
60 degrees
Pen resolution
5080 lpi
Pen technology
Electromagnetic resonance technology
Number of nibs
10 nibs
Multi-Touch
Yes
Touch technology
Projected capacitive
I/O Ports
- 1x mini DisplayPort
- 1x HDMI
- 2x USB Type-C
- 1x USB Standard-A
Product dimensions (L x W x H) (mm)
312 x 517 x 30 mm
Product dimensions (L x W x H) (inch)
12.3 x 20.3 x 1.2 in
Product weight (kg)
5.0 kg
Product weight (lbs)
11.0 lbs
System requirements
PC: Windows® 10 or later (Latest service pack/ build)
Mac: macOS 11 or later (Latest update)
Mac: macOS 11 or later (Latest update)
Hardware requirements
- USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
- Internet access for driver download
- *Ports on host PC 3840 x 2160@120Hz to show maximum resolution on Wacom Cintiq Pro 22
Product
Wacom Cintiq Pro 22
Cables
USB-C to USB-C cable (1.8 m), USB-C to USB Standard A cable (1.8 m), HDMI cable (1.8 m), Mini DisplayPort to DisplayPort cable (1.8 m)
Pen Kit
Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece. A detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
Documents
Quick start guide
Power
AC adapter, power cord (1.0 m)
Pen name
Wacom Pro Pen 3
Pen pressure levels
8192 levels
Pen type
Pressure-sensitive, cordless, battery-free
Number of switches
3 or 0 side switches
Pen tilt supported
60 degrees
Pen resolution
5080 lpi
Pen technology
Electromagnetic resonance technology
Number of nibs
10 nibs
Touch Specification
Multi-Touch
Yes
Touch technology
Projected capacitive
Connectivity
I/O Ports
- 1x mini DisplayPort
- 1x HDMI
- 2x USB Type-C
- 1x USB Standard-A
Dimension And Weight
Product dimensions (L x W x H) (mm)
312 x 517 x 30 mm
Product dimensions (L x W x H) (inch)
12.3 x 20.3 x 1.2 in
Product weight (kg)
5.0 kg
Product weight (lbs)
11.0 lbs
System Requirements
System requirements
PC: Windows® 10 or later (Latest service pack/ build)
Mac: macOS 11 or later (Latest update)
Mac: macOS 11 or later (Latest update)
Hardware requirements
- USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
- Internet access for driver download
- *Ports on host PC 3840 x 2160@120Hz to show maximum resolution on Wacom Cintiq Pro 22
What Is Included
Product
Wacom Cintiq Pro 22
Cables
USB-C to USB-C cable (1.8 m), USB-C to USB Standard A cable (1.8 m), HDMI cable (1.8 m), Mini DisplayPort to DisplayPort cable (1.8 m)
Pen Kit
Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece. A detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
Documents
Quick start guide
Power
AC adapter, power cord (1.0 m)
Optional Accessories
Compatible accessories
- Wacom Cintiq Pro 22 Stand (ACK64802KZ)
- Wacom FlexArm Adapter (ACK64804KZ)
- Wacom Cintiq Pro Extension Table (ACK44826Z)
- Wacom ExpressKey Remote (ACK411050)
- Wacom Color Manager (EODIS3-DCWA)
- Wacom Pro Pen 3 Tray (ACK44827Z)
- Wacom Pro Pen 3 (ACP50000DZ)
- Wacom Pro Pen 3 – Straight Grip (ACK34801Z)
- Wacom Pro Pen 3 – Flare Grip (ACK34802Z)
- Replacement Standard Nibs – Wacom ProPen 3 (ACK24801Z)
- Replacement Felt Nibs – Wacom ProPen 3 (ACK24819Z)
- Wacom Pro Pen 2 (KP504E)
- Wacom Pro Pen 2 – 3D (KP505)
- Wacom ProPen 2 – Slim (KP301E00DZ)
- Replacement Standard Nibs – Wacom ProPen 2 (ACK22211)
- Replacement Felt Nibs – Wacom ProPen 2 (ACK22213)
- AirbrushPen (KP400E)
- Wacom Grip Pen (KP501E2)
- Wacom Art Pen (KP701E)
- Replacement Standard Nibs – Wacom Art & Grip Pen (ACK20001)
- Replacement Hard Felt Nibs – Wacom Art & Grip Pen (ACK20003)
- Replacement Flex Nibs – Wacom Art & Grip Pen (ACK20004)
- Power Adapter – Wacom Cintiq Pro 27/22 (ACK44814Z)
- USB-C to USB-A cable (ACK4480601Z)
- USB-C to USB-C cable (ACK44806Z)
- Ultra High Speed HDMI™ Cable (ACK4480602Z)
- Mini DisplayPort™ to DisplayPort™
- Cintiq Pro 27/22 Power cable (ACK44806X)
- Wacom Drawing Glove – 1pack (ACK4472501Z)
