Wacom Cintiq Pro Family
Engineered for harmony
Breakthrough performance for inspired creativity. Thanks to a feat of design, engineering, technology and advice from leading professionals, creating with Wacom Cintiq Pro is an effortless, harmonious experience. Experience full immersion from the moment of inspiration to final creation with our range of professional creative pen displays.
Bring power to your palettes
Keep complete control of your color-critical workflow with authentic and consistent real-world colors from start to finish. Our 10-bit color displays unlock a palette of over a billion shades. High coverage of Adobe RGB and motion picture industry standard DCI-P3 provide artists with wider color gamuts and a larger breadth of colors to work with. Our Pantone™ Validated and Pantone SkinTone™ Validated certified displays ensure that the color you see on screen matches real-life skin tones and prints. Add more effectiveness to your workflow with factory calibrated color accuracy, helping to streamline sign offs and reduce unnecessary iterations of your creative work. Create in HDR Gamma from the start to experience the real vividness on display later and to minimize color corrections in the process.
A creative touch
The 10-point multi-touch enables you to interact with your content simultaneously with the pen on screen. Use natural gestures like panning, zooming, rotating and enjoy a completely immersive experience in your creative process. Seamlessly switch between touch gestures and pen strokes in a single move.
Find the right angle
Create the perfect setup for creativity with the Wacom Cintiq Pro Stand*, designed to bring maximum comfort, flexibility and stability to any desktop studio or remote workspace. Adjust height quickly, tilt or rotate up to 20° in each direction, all while keeping total focus on your workflow.
Wacom Cintiq Pro 27 and 22 require either the Wacom Cintiq Pro Stand* or a compatible VESA monitor arm**.
*Wacom Cintiq Pro Stand sold separately and available for Cintiq Pro 27, 22 and 17. Cintiq Pro 17 comes with an Easy Stand in the box which offers a single angle of use.
**Sold separately. Compatible monitor arm required for 180 degrees of display rotation (Landscape to Portrait). VESA 75 x 75mm for Cintiq Pro 17; VESA 100 x 100mm for Cintiq Pro 22 & 27.
Create at the speed of imagination
Never break your flow with the freedom of ExpressKeys™. Repositioned in the new rear grip of the display, each key is a shortcut of your choosing. This intuitive design gives you access to your favorite shortcuts before you realize you need them.
Sustainable by design
Wacom is striving to make our products more environmentally friendly. From product design materials to packaging, the new generation uses recycled materials wherever possible to produce the most sustainable Cintiq Pro ever. Because crafting better worlds starts with caring for ours.
Choose your Wacom Cintiq Pro
Let your most daring ideas run wild on Wacom Cintiq Pro 27 or Wacom Cintiq Pro 22.
If you’re short of desk space, the Wacom Cintiq Pro 17 is yours, letting you get big work done in small spaces.
Wacom Cintiq Pro 27
More screen, more space. Ideal for product design, video VFX, 3D sculpting & animation, print design and photography.
Wacom Cintiq Pro 22
A large workspace, suiting those with photography, graphic and advertising design needs.

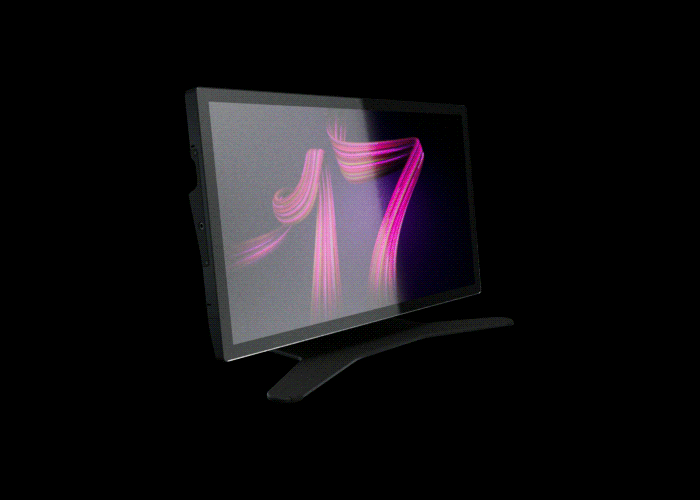

Wacom Cintiq Pro 17
A practical, yet powerful size. Perfect for the most demanding painting and retouching jobs.
“The magic inside our technology”
Our goal at Wacom has always been to bring people and technology together with natural, intuitive devices that help you make the most of your creativity.
A market leader in digital design and drawing devices, our products are the result of nearly 40 years’ experience of developing digital pen technology. Our dedicated engineers are always revising and refining to provide our smoothest, most responsive experience that our customers have come to value and trust.
Created for all who want to express ideas, we work with our customers to constantly improve our products in line with their needs. Robust yet refined, advanced yet intuitive, we are proud to provide benchmark creative technology for today and tomorrow.
Press Sense
Wacom Pro Pen 3 is sensitive to the way you write and draw and recognizes thick lines, thin lines, and shading.
Natural Touch
When it comes to drawing Pro Pen 3 is a natural. Intuitive, cutting-edge technology means it’s intelligent enough to know what the natural weight of your hand feels like for drawing fast and slow, or shading and textural effects.
Tilt Tracker
We’ve created tech that captures your specially angled strokes for comfortable and accurate shading.
Custom Nibs
Delicately balance feel and durability for different kinds of creativity with Wacom nibs that suit every style.
Battery-Free Pen
Lightweight, battery-free, all thanks to Wacom-patented EMR technology. Pro Pen 3 is comfortable for the long haul.
True Picture
Our industry-leading color displays showcase uniform brightness, high resolution, and true-to-life color quality, making them ideal for every role, from animation to design.
Glare-Free
All screens are treated with special reflection-reducing coating, so they’re gentle on the eyes and ready for creative marathons.
True Point
The feeling of drawing on paper comes naturally with pixel-precise alignment between pen tip and drawing point.
Textured Glass
Coated with a special treatment to add friction, drawing on Wacom Cintiq Pro 27 feels just like drawing on paper.
Pixel Perfect
We’ve carefully engineered our screens to avoid parallax – the disconnect between where you expect the cursor to be, and where it actually is – so working with Wacom screens is intuitive and comfortable.
Anti-Jitter
Lines are clear and super smooth thanks to anti-jitter technology.
Anti-Lag
With virtually no lag, every Pro Pen move seamlessly shows on screen. So pen-on-screen feels second nature.
Linux Support
Because Wacom’s products are standard tools across the Media and Entertainment industry, Wacom Cintiq Pro (and all of our professional products) are supported for easy integration into your studio or professional workflow. Our reliable plug and play experience is unmatched in the industry, with no driver download necessary, and is compatible with all modern Linux distributions for local and virtualized systems. In addition, Wacom offers focused technical support and consultancy for enterprise clients to make sure that our products are working in your specific implementation. For more information visit the Wacom Community, or contact a Wacom representative in your region for assistance.
Get complimentary software offers with every Cintiq Pro
Toon Boom Harmony
Redeem 3 months of Toon Boom's Harmony Premium 22 end to end animation software used by studios around the world. Experience Harmony's complete suite of drawing and animation tools, complete with color management, audio and lip synching technology, compositing, integration of 3D elements, and more – perfect to pair with your Wacom Cintiq Pro.
*To get your 90-day complimentary software you need to sign in with your Wacom ID, respectively create a Wacom ID account with your personal data, and register your device. To begin using the software after installation, registration with Toon Boom is required.
Toon Boom Storyboard Pro
Toon Boom's Storyboard Pro supports the complete storyboarding process – now also you can try Toon Boom for 3 months free*. Storyboard Pro brings together all the tools you need for your next storyboard project: drawing, scripting, camera controls, animation creation features, and sound.
*To get your 90-day complimentary software you need to sign in with your Wacom ID, respectively create a Wacom ID account with your personal data, and register your device. To begin using the software after installation, registration with Toon Boom is required.
Unleash your inner artist with Clip Studio Paint EX
The premier painting tool - ideal for any way you express your creativity, be it through illustration, comic, webtoon, or animation. Draw out your infinite creative potential with a wealth of features to help you get the most out of your process in a true-to-life painting experience. Hone your skills on the Wacom Cintiq Pro, with up to 6 free months of Clip Studio Paint EX.
Limited time software offer MASV
Redeem 3 free months (or 250 GB) of lightning fast file transfer. MASV is the fastest and most reliable way for video and creative pros to transfer large, time-critical files. You can send files to desired recipients or use MASV portals so clients or partners can transfer files to you. It's simple user interface makes it easy for anyone to use.
Shapr3D
Go from idea to 3D prototyping in minutes, create anywhere, and export manufacturable models with Shapr3D. Compatible with all major desktop CAD software, Shapr3D makes design approachable and accessible*.
*To get your 3-months complimentary software you need to sign-in or create a Wacom ID with your personal data and register your device. To begin using Shapr3D software after installation, registration with Shapr3D is required.
Bluescape
Bluescape is the platform for creative collaboration. Streamline workflows with all your ideas, assets, iterations, and entire projects into one virtual workspace. Reduce meetings and finish projects faster in a secure platform* trusted by Fortune 100 companies and the world’s largest movie studios.
*To get your 3-months complimentary access you need to sign-in or create a Wacom ID with your personal data and register your device. To begin using Bluescape, registration with Bluescape is required.
Work less and create more with a full suite of editing features and AI tools that take care of time-consuming tasks with 3 months of Capture One Pro and your Wacom Cintiq Pro. Fast tethered shooting right into your computer. Seamless collaboration with teams and clients no matter where they are in the world. Expertly-designed presets for instant looks. Plus, mind-blowing colors and image quality. All made to work the way you want, alongside your Wacom device.
Accessories
Wacom Cintiq Pro Extension Table
Gives a home to your favorite tools like keyboard or smartphones. Easily attaches to your Cintiq Pro 27 and 22. Not compatible with Cintiq Pro 17.
ExpressKey™ Remote
Save time on common creative tasks with the ExpressKey™ Remote’s set of 17 customizable buttons and Touch Ring.
Wacom Color Manager
Wacom Color Manager gives you precision color calibration, better image quality and improved uniformity across your entire workflow.
Wacom Drawing Glove
Our eco-friendly glove prevents smudges on your Wacom display or tablet surface.
Wacom Pro Pen 3
The Wacom Pen precision you’d expect. With customizable weight, grip thickness, pen buttons and center of gravity, find the balance that suits your style.

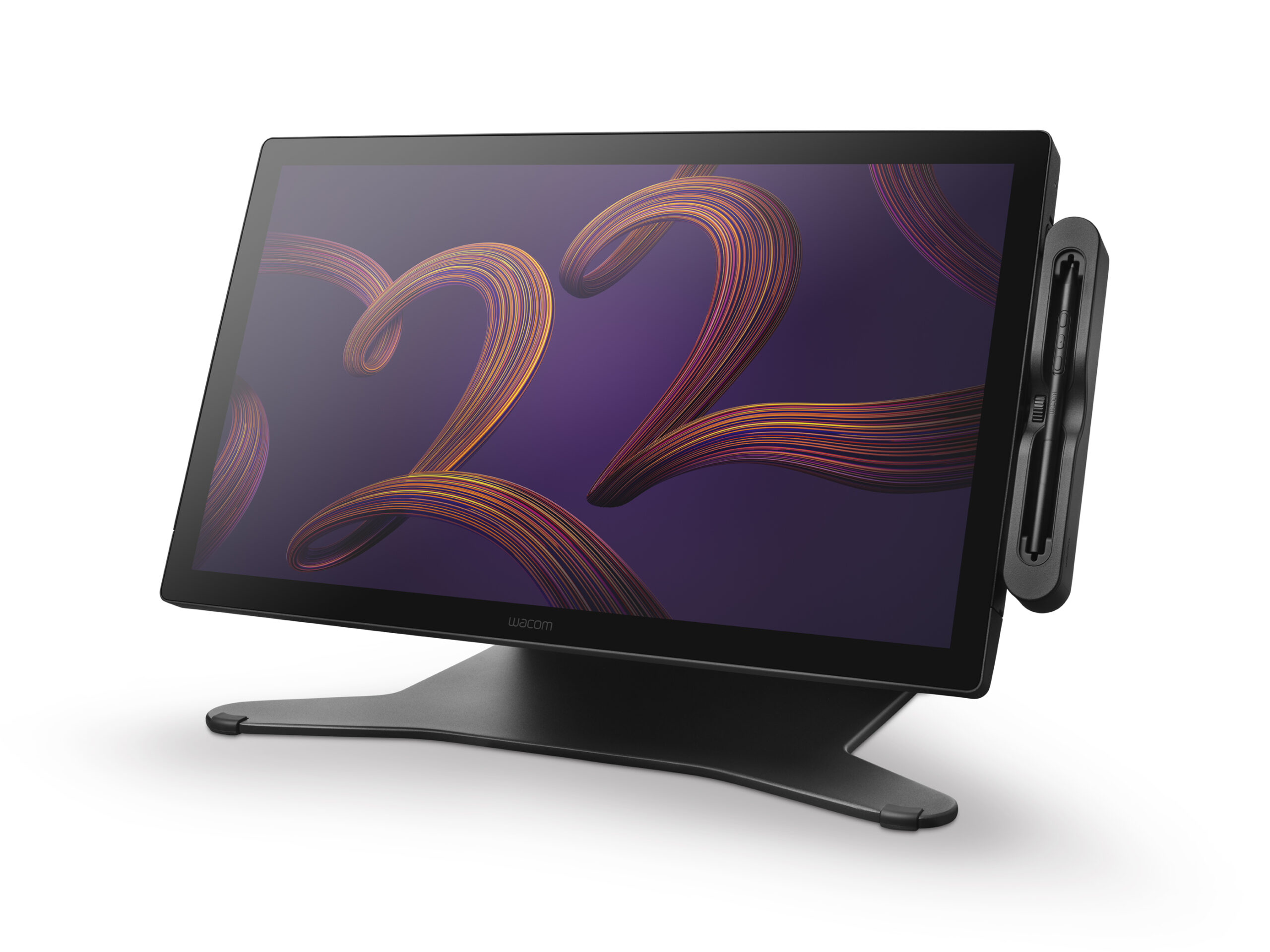

Wacom Pro Pen 3 Tray
Keeps your pen ready to use and safe while storing your extra nibs and grips. Easily attaches to your Cintiq Pro 27
Wacom Cintiq Pro 17 power adapter
Replacement Wacom Cintiq Pro 17 AC Power Adapter is an external power supply (20V/3.5A) designed to work specifically with the Wacom Cintiq Pro 17
Mini DisplayPort™ to DisplayPort™ Cable 1.8M
Mini DisplayPort™ to DisplayPort™ cable, (1.8 meters long) that ships with compatible products.
Ultra High Speed HDMI™ Cable 1.8M
Ultra High Speed HDMI™ replacement cable, (1.8 meters long) that ships with compatible products.
Wacom Cintiq Pro 17 Specifications
Display Size
17.3 in (43.9 cm)
Refresh Rate
Maximum 120Hz
Color Gamut
99% DCI-P3
88% Adobe RGB
100% Rec.709
Pantone™ Validated and Pantone SkinTone™ Validated certifications
HDR Gamma Support
Pen
Wacom Pro Pen 3
Productivity Boosters
ExpressKey™, on-screen controls, time-savings settings
Product information
Product Type
Creative Pen Display
Model Code
DTH172
Product Weight
2.2 kg / 4.9 lbs
Product Dimensions
253 x 424 x 21 mm (10.0 x 16.7 x 0.8 in)
Product Color
Black
Stand Adjustability
Includes the Easy Stand for Wacom Cintiq Pro 17 that attaches by a standard
75 x 75 mm VESA mount. Optional Wacom Cintiq Pro 17 Stand that supports
tilt, lift, and rotation; the stand attaches by a standard 75 x 75 mm VESA mount
Productivity Boosters
- ExpressKey™ – Yes (total 8 keys)
- Touch on/off switch
- Dedicated pan, scroll, zoom, brush size
- Precision Mode
- Radial Menu
- Display Toggle
- On-screen controls
- Pen gestures
Power Input Voltage
100 to 240 VAC, 50/60Hz
Power Output Voltage
20.0V / 3.25A
Security
Kensington® Security Slot
Storage Temperature and Humidity
- Temperature: -10 to 60 degree C
- Humidity: 30% to 90% RH (non-condensing)
- Maximum storage humidity is 90% at a temperature of 40 degree C, and maximum storage temperature is 60 degree C at a humidity of 30%.
Operating Temperature and Humidity
- Temperature: 5 to 40 degree C
- Humidity: 30% to 80% RH (non-condensing)
Warranty
2 years
Pen & Touch Display Technology
Screen Size (measured diagonally)
17.3 in (43.9 cm)
Active Area
382 x 215 mm (15.0 x 8.5 in)
Display Technology
IPS
Touch Technology
Projected capacitive
Multi-touch
Yes – 10 fingers
Display Resolution
3840 x 2160 pixels
Supported Resolution
- 640×480@60Hz (VGA)
- 720×400@70Hz (IBM_VGA)
- 720×480@60Hz
- 720×576@50Hz
- 800×600@60Hz (SVGA)
- 1024×768@60Hz (XGA)
- 1280×720@50Hz/60Hz (HD)
- 1280×1024@60Hz (SXGA)
- 1600×1200@60Hz (UXGA)
- 1920×1080@24Hz/48Hz/50Hz/60Hz/120Hz (FHD)
- 2560×1440@60Hz/120Hz (WQHD)
- 3840×2160@24Hz/48Hz/50Hz/60Hz/120Hz
Uniformity compensation function
Yes
Pixel Pitch
0.09945(H) x 0.09945(V) mm
Surface
Edge-to-edge tempered glass with AG etching
Brightness
400 cd/m2 (typ)
Display Colors (maximum)
1.07 billion (Color depth: 10bit x RGB = 30bit)
Color Gamut Coverage Ratio
- DCI-P3 99% (CIE 1931) (typ)
- Adobe RGB 88% (CIE 1931) (typ)
- Rec.709 100% (CIE1931) (typ)
- Pantone™ Validated and Pantone SkinTone™ Validated certifications
Aspect Ratio
16:9
Viewing Angle
170° (85°/85°) H, (85°/85°) V (typ)
Contrast Ratio
1000:1 (typ)
Response Time
8 ms (typ)
Pen
Wacom Pro Pen 3
Pen Technology
Electromagnetic resonance technology
Pen Pressure levels
8192 levels
Supported Pen Tilt Angle
60 degrees
Pen Resolution
5080 lpi
Pen Type
Pressure-sensitive, cordless, battery-free
Switches
3 or 0 side switches
Replacement Nibs
10 nibs
Compatibility & Connectivity
Operating system requirements
- PC: Windows® 10 or later (Latest service pack/ build)
- Mac: macOS 11 or later (Latest update)
Hardware Requirements
- USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
- Internet access for driver download
*Ports on host PC 3840 x 2160@120Hz to show maximum resolution on Wacom Cintiq Pro 17
I/O connectors
- 1x mini DisplayPort
- 1x HDMI
- 1x USB Type-C
What's included & optional accessories
What’s Included
- Wacom Cintiq Pro 17
- Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece
- a detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
- Wacom Cintiq Pro Easy Stand
- USB-C to USB-C cable (1.8 m)
- AC adapter
- power cord (1.0 m)
- quick start guide
- Regulation sheet
Optional Accessories
- Wacom Cintiq Pro 17 Stand (ACK64803KZ)
- Wacom ExpressKey Remote (ACK411050)
- Wacom Color Manager (EODIS3-DCWA)
- Wacom Pro Pen 3 Tray (ACK44827Z)
- Wacom Pro Pen 3 (ACP50000DZ)
- Wacom Pro Pen 3 – Straight Grip (ACK34801Z)
- Wacom Pro Pen 3 – Flare Grip (ACK34802Z)

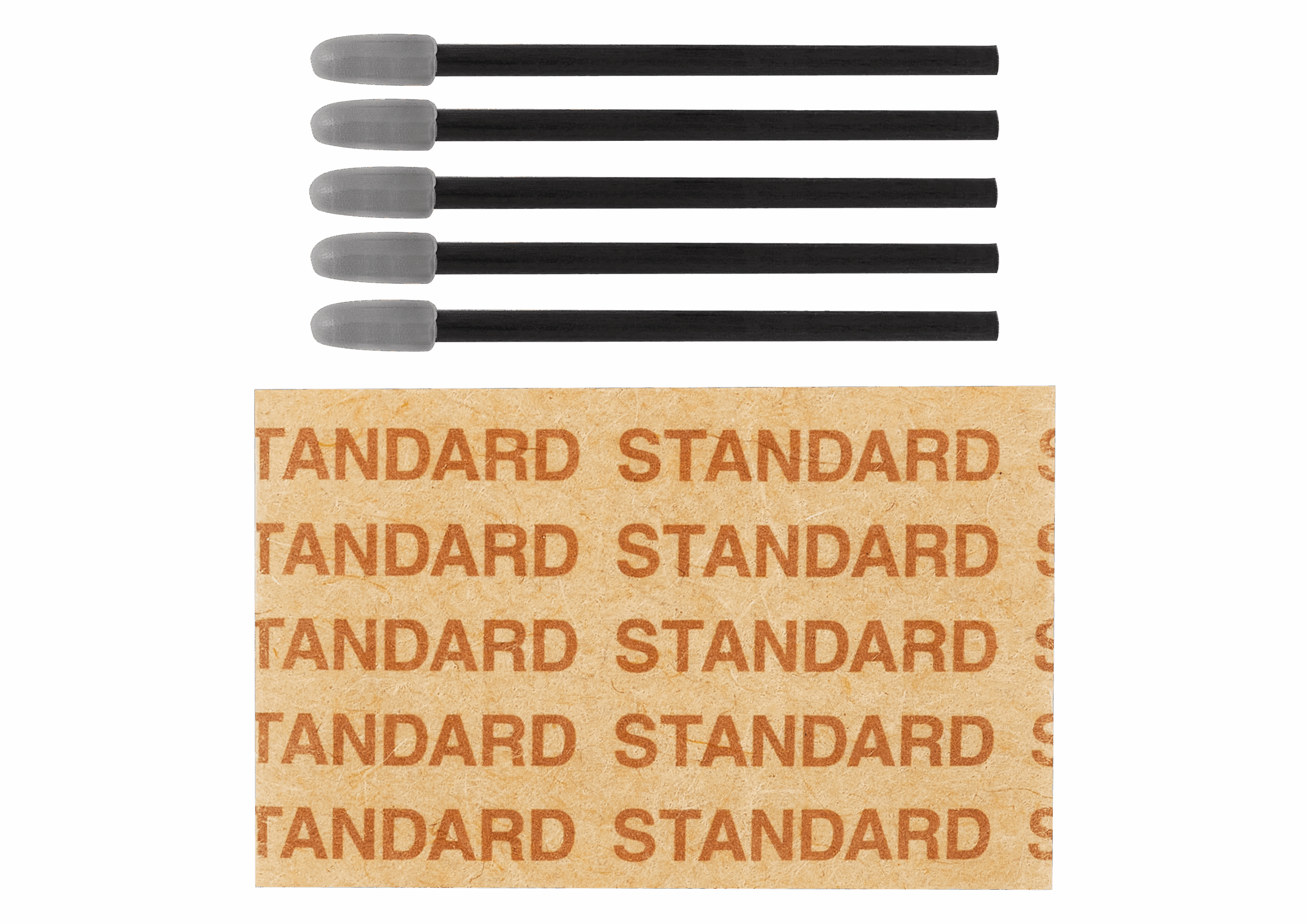

- Replacement Standard Nibs – Wacom ProPen 3 (ACK24801Z)

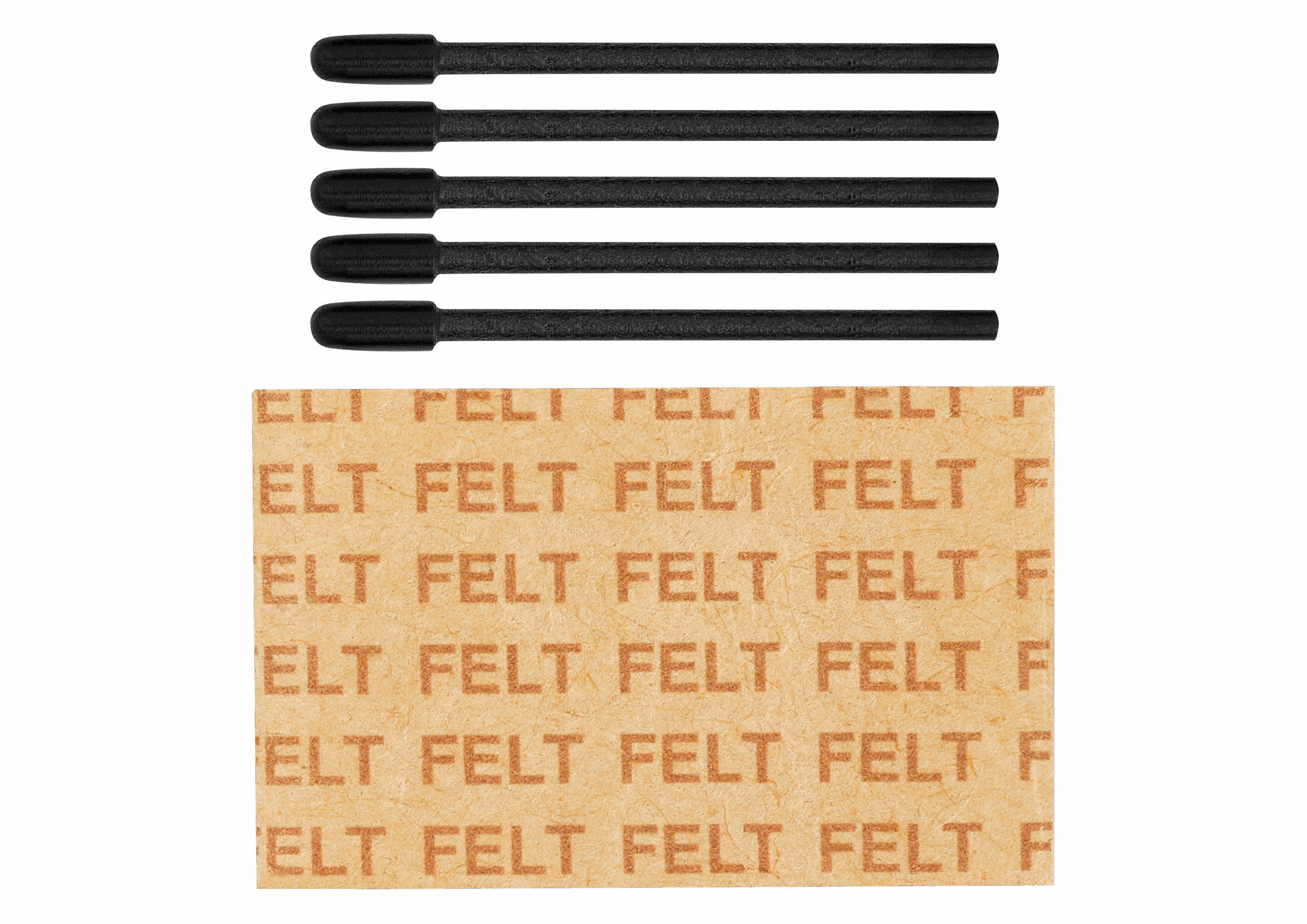

- Replacement Felt Nibs – Wacom ProPen 3 (ACK24819Z)
- Wacom Pro Pen 2 (KP504E)
- Wacom Pro Pen 2 – 3D (KP505)
- Wacom ProPen 2 – Slim (KP301E00DZ)
- Replacement Standard Nibs – Wacom ProPen 2 (ACK22211)
- Replacement Felt Nibs – Wacom ProPen 2 (ACK22213)
- AirbrushPen (KP400E)
- Wacom Grip Pen (KP501E2)
- Wacom Art Pen (KP701E)
- Replacement Standard Nibs – Wacom Art & Grip Pen (ACK20001)
- Replacement Hard Felt Nibs – Wacom Art & Grip Pen (ACK20003)
- Replacement Flex Nibs – Wacom Art & Grip Pen (ACK20004)
- Power Adapter – Wacom Cintiq Pro 17 (ACK4481401Z)
- USB-C to USB-A cable (ACK4480601Z)
- USB-C to USB-C cable (ACK44806Z)
- Ultra High Speed HDMI™ Cable (ACK4480602Z)
- Mini DisplayPort™ to DisplayPort™ (ACK4480603Z)
- Cintiq Pro 17 Power cable (ACK4480601)
- Wacom Drawing Glove – 1pack (ACK4472501Z)
Wacom Cintiq Pro 22 Specifications
Display Size
21.5 in (54.6 cm)
Refresh Rate
Maximum 120Hz
Color Gamut
99% DCI-P3
95% Adobe RGB
100% Rec.709
Pantone™ Validated and Pantone SkinTone™ Validated certifications
HDR Gamma Support
Pen
Wacom Pro Pen 3
Productivity Boosters
ExpressKey™, on-screen controls, time-savings settings
Product information
Product Type
Creative Pen Display
Model Code
DTH227
Product Weight
5.0 kg / 11.0 lbs
Product Dimensions
312 x 517 x 30 mm (12.3 x 20.3 x 1.2 in)
Product Color
Black
Stand Adjustability
Optional Wacom Cintiq Pro 22 Stand that supports tilt, lift, and rotation;
the stand attaches by a standard 100 x 100 mm VESA mount
Productivity Boosters
- ExpressKeys™ – Yes (total 8 keys)
- Touch on/off switch
- Dedicated pan, scroll, zoom, brush size
- Precision Mode
- Radial Menu
- Display Toggle
- On-screen controls
- Pen gestures
Power Input Voltage
100 to 240 VAC, 50/60Hz
Power Output Voltage
19.0V / 8.4A
Security
Kensington® Security Slot
Storage Temperature and Humidity
- Temperature: -10 to 60 degree C
- Humidity: 30% to 90% RH (non-condensing)
- Maximum storage humidity is 90% at a temperature of 40 degree C, and maximum storage temperature is 60 degree C at a humidity of 30%.
Operating Temperature and Humidity
- Temperature: 5 to 40 degree C
- Humidity: 30% to 80% RH (non-condensing)
Warranty
2 years
Pen & Touch Display Technology
Screen Size (measured diagonally)
21.5 in (54.6 cm)
Active Area
476 x 268 mm (18.7 x 10.5 in)
Display Technology
IPS
Touch Technology
Projected capacitive
Multi-touch
Yes – 10 fingers
Display Resolution
3840 x 2160 pixels
Supported Resolution
- 640×480@60Hz (VGA)
- 720×400@70Hz (IBM_VGA)
- 720×480@60Hz
- 720×576@50Hz
- 800×600@60Hz (SVGA)
- 1024×768@60Hz (XGA)
- 1280×720@50Hz/60Hz (HD)
- 1280×1024@60Hz (SXGA)
- 1600×1200@60Hz (UXGA)
- 1920×1080@24Hz/48Hz/50Hz/60Hz/120Hz (FHD)
- 2560×1440@60Hz/120Hz (WQHD)
- 3840×2160@24Hz/48Hz/50Hz/60Hz/120Hz
Uniformity compensation function
Yes
Pixel Pitch
0.12398(H) x 0.12398(V) mm
Surface
Edge-to-edge tempered glass with AG etching
Brightness
300 cd/m2 (typ)
Display Colors (maximum)
1.07 billion (Color depth: 10bit x RGB = 30bit)
Color Gamut Coverage Ratio
- DCI-P3 99% (CIE 1931) (typ)
- Adobe RGB 95% (CIE 1931) (typ)
- Rec.709 100% (CIE1931) (typ)
- Pantone™ Validated and Pantone SkinTone™ Validated certifications
Aspect Ratio
16:9
Viewing Angle
170° (85°/85°) H, (85°/85°) V (typ)
Contrast Ratio
1200:1 (typ)
Response Time
12 ms (typ)
Pen
Wacom Pro Pen 3
Pen Technology
Electromagnetic resonance technology
Pen Pressure levels
8192 levels
Supported Pen Tilt Angle
60 degrees
Pen Resolution
5080 lpi
Pen Type
Pressure-sensitive, cordless, battery-free
Switches
3 or 0 side switches
Replacement Nibs
10 nibs
Compatibility & Connectivity
Operating system requirements
- PC: Windows® 10 or later (Latest service pack/ build)
- Mac: macOS 11 or later (Latest update)
Hardware Requirements
- USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
- Internet access for driver download
*Ports on host PC 3840 x 2160@120Hz to show maximum resolution on Wacom Cintiq Pro 22
I/O connectors
- 1x mini DisplayPort
- 1x HDMI
- 2x USB Type-C
- 1x USB Standard-A
What's include and Optional Accessories
What’s Included
- Wacom Cintiq Pro 22
- Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece
- a detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
- USB-C to USB-C cable (1.8 m)
- USB-C to USB Standard A cable (1.8 m)
- HDMI cable (1.8 m)
- Mini DisplayPort to DisplayPort cable (1.8 m)
- AC adapter
- power cord (1.0 m)
- quick start guide
- Regulation sheet
Optional Accessories
- Wacom Cintiq Pro 22 Stand (ACK64802KZ)
- Wacom FlexArm Adapter (ACK64804KZ)
- Wacom Cintiq Pro Extension Table (ACK44826Z)
- Wacom ExpressKey Remote (ACK411050)
- Wacom Color Manager (EODIS3-DCWA)
- Wacom Pro Pen 3 Tray (ACK44827Z)
- Wacom Pro Pen 3 (ACP50000DZ)
- Wacom Pro Pen 3 – Straight Grip (ACK34801Z)
- Wacom Pro Pen 3 – Flare Grip (ACK34802Z)
- Replacement Standard Nibs – Wacom ProPen 3 (ACK24801Z)
- Replacement Felt Nibs – Wacom ProPen 3 (ACK24819Z)
- Wacom Pro Pen 2 (KP504E)
- Wacom Pro Pen 2 – 3D (KP505)
- Wacom ProPen 2 – Slim (KP301E00DZ)
- Replacement Standard Nibs – Wacom ProPen 2 (ACK22211)
- Replacement Felt Nibs – Wacom ProPen 2 (ACK22213)
- AirbrushPen (KP400E)
- Wacom Grip Pen (KP501E2)
- Wacom Art Pen (KP701E)
- Replacement Standard Nibs – Wacom Art & Grip Pen (ACK20001)
- Replacement Hard Felt Nibs – Wacom Art & Grip Pen (ACK20003)
- Replacement Flex Nibs – Wacom Art & Grip Pen (ACK20004)
- Power Adapter – Wacom Cintiq Pro 27/22 (ACK44814Z)
- USB-C to USB-A cable (ACK4480601Z)
- USB-C to USB-C cable (ACK44806Z)
- Ultra High Speed HDMI™ Cable (ACK4480602Z)
- Mini DisplayPort™ to DisplayPort™
- Cintiq Pro 27/22 Power cable (ACK44806X)
- Wacom Drawing Glove – 1pack (ACK4472501Z)
Wacom Cintiq Pro 27 Specifications
Display Size
26.9 in (68.3 cm)
Refresh Rate
Maximum 120Hz
Color Gamut
98% DCI-P3
99% Adobe RGB
100% Rec.709
Pantone™ Validated and Pantone SkinTone™ Validated certifications
HDR Gamma Support
Pen
Wacom Pro Pen 3
Productivity Boosters
ExpressKey™, on-screen controls, time-savings settings
Product information
Product Type
Creative Pen Display
Model Code
DTH271
Product Weight
7.2 kg (15.9 Ibs)
Product Dimensions
379 x 638 x 31 mm (14.9 x 25.1 x 1.2 in)
Product Color
Black
Stand Adjustability
Optional Wacom Cintiq Pro 27 Stand that supports tilt, lift, and rotation; the stand attaches by a standard 100 x 100 mm VESA mount.
Productivity Boosters
- ExpressKey™ – Yes (total 8 keys)
- Touch on/off switch
- Dedicated pan, scroll, zoom, brush size
- Precision Mode
- Radial Menu
- Display Toggle
- On-screen controls
- Pen gestures
Power Input Voltage
100 to 240 VAC, 50/60Hz
Power Output Voltage
19.0V / 8.4A
Security
Kensington® Security Slot
Storage Temperature and Humidity
- Temperature: -10 to 60 degree C
- Humidity: 30% to 90% RH (non-condensing)
- Maximum storage humidity is 90% at a temperature of 40 degree C, and maximum storage temperature is 60 degree C at a humidity of 30%.
Operating Temperature and Humidity
- Temperature: 5 to 40 degree C
- Humidity: 30% to 80% RH (non-condensing)
Warranty
2 years
Pen & Touch Display Technology
Screen Size (measured diagonally)
26.9 in (68.3 cm)
Active Area
596 x 335 mm (23.5 x 13.2 in)
Display Technology
IPS
Touch Technology
Projected capacitive
Multi-touch
Yes – 10 fingers
Display Resolution
3840 x 2160 pixels
Supported Resolution
- 640×480@60Hz (VGA)
- 720×400@70Hz (IBM_VGA)
- 720×480@60Hz
- 720×576@50Hz
- 800×600@60Hz (SVGA)
- 1024×768@60Hz (XGA)
- 1280×720@50Hz/60Hz (HD)
- 1280×1024@60Hz (SXGA)
- 1600×1200@60Hz (UXGA)
- 1920×1080@24Hz/48Hz/50Hz/60Hz/120Hz (FHD)
- 2560×1440@60Hz/120Hz (WQHD
- 3840×2160@24Hz/48Hz/50Hz/60Hz/120Hz
Uniformity compensation function
Yes
Pixel Pitch
0.15525 (H) x 0.15525 (V) mm
Surface
Edge-to-edge tempered glass with AG etching
Brightness
400 cd/m2 (typ)
Displayable Colors (maximum)
1.07 billion (Color depth: 10bit x RGB = 30bit)
Color Gamut Coverage Ratio
- DCI-P3 98% (CIE 1931) (typ)
- Adobe RGB 99% (CIE 1931) (typ)
- Rec.709 100% (CIE1931) (typ)
- Pantone™ Validated and Pantone SkinTone™ Validated certifications
Aspect Ratio
16:9
Viewing Angle
178° (89°/89°) H, (89°/89°) V (typ)
Contrast Ratio
1000:1 (typ)
Response Time
10 ms (typ)
Pen
Wacom Pro Pen 3
Pen Technology
Electromagnetic resonance technology
Pen Pressure levels
8192 levels
Supported Pen Tilt Angle
60 degrees
Pen Resolution
5080 lpi
Pen Type
Pressure-sensitive, cordless, battery-free
Switches
3 or 0 side switches
Replacement Nibs
10 nibs
Compatibility & Connectivity
Operating system requirements
- PC: Windows® 10 or later (Latest service pack/ build)
- Mac: macOS 10.15 or later (Latest update)
Hardware Requirements
- USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
- Internet access for driver download
*Ports on host PC 3840 x 2160@120Hz to show maximum resolution on Wacom Cintiq Pro 27
I/O connectors
- 1x mini DisplayPort
- 1x HDMI
- 2x USB Type-C
- 1x USB Standard-A
What's include and Optional Accessories
What’s Included
- Wacom Cintiq Pro 27
- Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece
- a detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
- USB-C to USB-C cable (1.8 m)
- USB-C to USB Standard A cable (1.8 m)
- HDMI cable (1.8 m)
- Mini DisplayPort to DisplayPort cable (1.8 m)
- AC adapter
- power cord (1.0 m)
- quick start guide
- Regulation sheet
Optional Accessories
- Wacom Cintiq Pro 27 Stand (ACK64801KZ)
- Wacom FlexArm Adapter (ACK64804KZ)
- Wacom Cintiq Pro Extension Table (ACK44826Z)
- Wacom ExpressKey Remote (ACK411050)
- Wacom Color Manager (EODIS3-DCWA)
- Wacom Pro Pen 3 Tray (ACK44827Z)
- Wacom Pro Pen 3 (ACP50000DZ)
- Wacom Pro Pen 3 – Straight Grip (ACK34801Z)
- Wacom Pro Pen 3 – Flare Grip (ACK34802Z)
- Replacement Standard Nibs – Wacom ProPen 3 (ACK24801Z)
- Replacement Felt Nibs – Wacom ProPen 3 (ACK24819Z)
- Wacom Pro Pen 2 (KP504E)
- Wacom Pro Pen 2 – 3D (KP505)
- Wacom ProPen 2 – Slim (KP301E00DZ)
- Replacement Standard Nibs – Wacom ProPen 2 (ACK22211)
- Replacement Felt Nibs – Wacom ProPen 2 (ACK22213)
- AirbrushPen (KP400E)
- Wacom Grip Pen (KP501E2)
- Wacom Art Pen (KP701E)
- Replacement Standard Nibs – Wacom Art & Grip Pen (ACK20001)
- Replacement Hard Felt Nibs – Wacom Art & Grip Pen (ACK20003)
- Replacement Flex Nibs – Wacom Art & Grip Pen (ACK20004)
- Power Adapter – Wacom Cintiq Pro 27/22 (ACK44814Z)
- USB-C to USB-A cable (ACK4480601Z)
- USB-C to USB-C cable (ACK44806Z)
- Ultra High Speed HDMI™ Cable (ACK4480602Z)
- Mini DisplayPort™ to DisplayPort™ (ACK4480603Z)
- Cintiq Pro 27/22 Power cable (ACK44806X)
- Wacom Drawing Glove – 1pack (ACK4472501Z)
